Building Production-Grade API Security
We built a customer-facing API processing thousands of transactions per minute. The challenge wasn’t just handling the volume, it was protecting against attacks while maintaining performance. Every blocked malicious request saves money and prevents potential breaches, but every millisecond of latency added by security layers impacts user experience.
Sponsored by Salesforce
Salesforce goes Headless 360
The biggest news out of SF last week wasn’t a new UI, it was the decoupling of it. Salesforce is officially pivoting to an API-first “Headless 360” architecture. For those of us tired of the walled garden constraints, this is a massive shift. By separating core CRM logic and data from the standard UI, we can now treat Salesforce as a backend engine for any custom frontend or external application stack.
Click the link here and let me know what you think!
Explore the biggest announcements, launches, and innovations from TDX 2026.
Agentic AI is changing the game and Agentforce is leading the way. Watch TDX on demand to explore dozens of sessions covering the latest innovations across Agentforce, Data 360, the core platform, vibe coding, Slack, and more. All free on Salesforce+.
Watch TDX on Salesforce+ to:
Get roadmap insights from the leaders shaping what’s next
Access broadcast-only moments and exclusive interviews
It all starts with the main keynote, where you’ll experience the future of software and learn how to build it. Watch it now and catch every moment at your own pace.
👉 Watch Now
The Requirements
Let’s now go back to our article. We needed security that addressed four critical concerns:
Application-layer protection against SQL injection, XSS, and other OWASP Top 10 attacks that target business logic rather than infrastructure.
DDoS mitigation at both network and application layers without manual intervention. When attacks happen at 3 AM, automated response is non-negotiable.
Rate limiting and throttling that works across a global user base. Simple IP-based limiting breaks with legitimate users behind corporate NATs or mobile carriers.
Performance constraints of sub-200ms API response times even with all security layers active. Security cannot become the bottleneck.
We also needed complete observability into every attack attempt with real-time alerting when patterns emerge. The solution had to scale automatically, security couldn’t become the constraint during traffic spikes.
The AWS Services
API Gateway serves as the entry point, handling authentication, request validation, and throttling before requests reach backend functions. It’s the first line of defense that rejects malformed requests immediately.
AWS WAF sits in front of API Gateway, inspecting every HTTP request against managed rule sets and custom rules. It blocks attacks at the edge before they consume API Gateway capacity or cost Lambda invocations.
AWS Shield Standard comes automatically with API Gateway, providing DDoS protection against common network and transport layer attacks. Shield Advanced is available for scenarios requiring dedicated DDoS response team support.

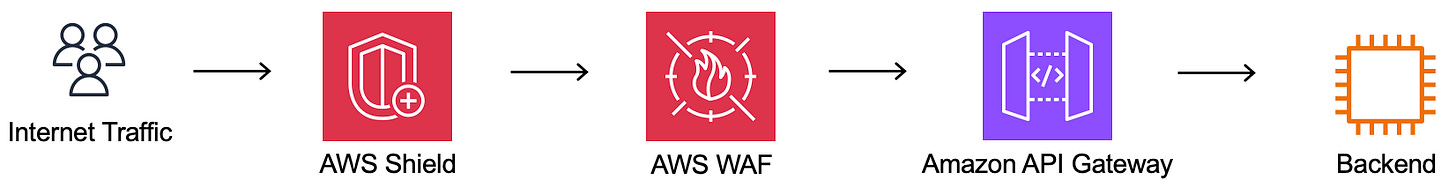

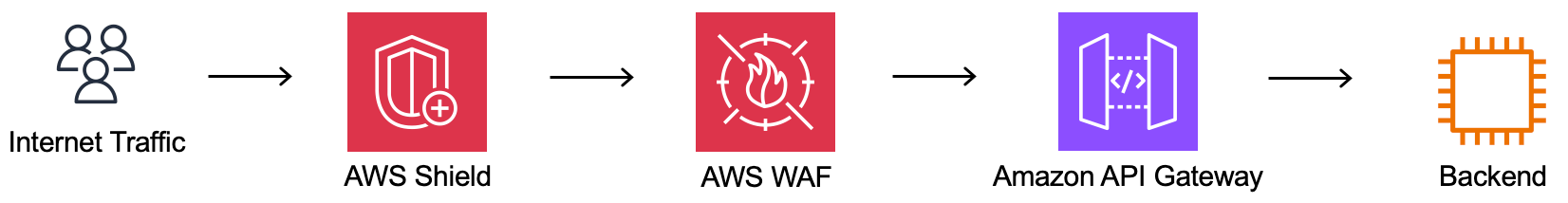

The Flow
When a request hits our API, it reaches the regional API Gateway with WAF rules applied at the edge. If the request matches a block rule, suspicious patterns, known bad IPs, rate limit exceeded, it’s rejected with a 403 before reaching API Gateway.
For legitimate requests that pass WAF inspection, API Gateway applies its own throttling limits, validates the request structure, checks API keys or JWT tokens, and only then invokes backend functions. If anything fails validation, the request is rejected without consuming compute capacity.
This layered approach means attacks get stopped at the cheapest point possible. WAF blocks cost nothing beyond the WAF inspection fee. API Gateway rejections cost nothing beyond the API call. Only legitimate requests that pass all checks consume Lambda invocations.
Deep Dive: WAF Rule Strategy
We started with AWS Managed Rules, they catch 90% of common attacks immediately. But we hit false positives on legitimate API calls that included JSON payloads with special characters.
Our custom rules operate with three priorities:
IP reputation list blocks known malicious IPs. We integrated threat intelligence feeds that update hourly. This stops repeat offenders before they even attempt an attack.
Rate-based rules block IPs making more than 2,000 requests in five minutes. This catches credential stuffing attempts targeting our login endpoints. We observed attackers cycling through stolen credentials at exactly this rate, fast enough to test thousands of accounts but slow enough to avoid obvious detection.
Geo-blocking rules target countries with no legitimate users but high attack traffic. This was controversial internally, but the data was clear: 95% of attacks came from regions with zero paying customers.
The critical decision: we set WAF to count mode initially, not block. We observed traffic patterns for two weeks, identified false positives, tuned rules, then switched to block mode. This prevented accidentally blocking legitimate users during the learning phase.
Deep Dive: API Gateway Security Features
API Gateway provides multiple security layers beyond basic routing.
Request validation happens before Lambda invocation, rejecting requests with malformed JSON, missing required parameters, or invalid data types. This prevents malicious payloads from reaching backend code. We defined JSON schemas for every endpoint, verbose to maintain, but it stops entire classes of attacks.
Authentication integrates with multiple mechanisms. We use API keys for simple use cases, Lambda authorizers for custom logic, and Cognito user pools for OAuth 2.0 flows. Each request is validated before consuming any compute resources.
Resource policies add another control layer. We restricted our internal APIs to specific VPCs, preventing public internet access entirely while maintaining the benefits of API Gateway’s managed service.
Deep Dive: Throttling Strategy
API Gateway’s throttling operates at multiple levels, and understanding each is critical.
Account-level limits serve as a safety net, but real control comes from usage plans. Each usage plan has both rate limits (steady-state) and burst capacity. Burst capacity matters during traffic spikes when clients temporarily exceed their rate limit using burst tokens. We set burst to 2x the rate limit, this handles legitimate spikes without triggering false positives.
Custom throttling in WAF for specific endpoints adds another layer. Our login endpoints get rate-limited to 10 requests per minute per IP, far more restrictive than general API limits. This stops brute force attacks without impacting normal API usage.
Method-level throttling provides even finer control. Read operations (GET) can have higher limits than write operations (POST, PUT, DELETE), reflecting their different resource consumption and risk profiles. We observed that 80% of attacks targeted write endpoints, so we throttled them more aggressively.
Deep Dive: Shield Protection
Shield Standard provides automatic protection against common DDoS attacks at the network and transport layers. It detects and mitigates SYN floods, UDP reflection attacks, and other volumetric attacks without any configuration.
The protection operates inline with minimal latency impact. Shield’s detection algorithms analyze traffic patterns in real-time, distinguishing legitimate traffic spikes from attack patterns. When attacks are detected, mitigation happens automatically within seconds.
For our API, Shield Advanced wasn’t initially necessary. The decision point: Shield Advanced makes sense when API downtime costs exceed $3,000/month or when regulatory requirements mandate dedicated security response. We added it after a competitor suffered a multi-day DDoS attack that made headlines.
Monitoring and Observability
WAF logs every blocked request to CloudWatch Logs. We stream these to S3 for long-term analysis. Analyzing these logs reveals attack patterns, identifies false positives, and guides rule tuning. We set up CloudWatch alarms for blocked request spikes, when blocks exceed 1,000 per minute, we get paged.
API Gateway metrics expose throttling events, 4xx/5xx error rates, and latency distributions. We correlate WAF blocks with API Gateway metrics to see the full security picture, which attacks reached API Gateway versus which were blocked at WAF.
X-Ray tracing adds end-to-end visibility, showing exactly where requests spend time and where failures occur. This proved essential when debugging whether performance issues stemmed from security layers, backend code, or downstream services.
Cost Breakdown
WAF costs run approximately $5/month base fee plus $1 per million requests plus $1 per rule per month. With 10 custom rules and 100 million requests monthly, that’s $115/month.
API Gateway costs are $3.50 per million requests for REST APIs. At 100 million requests monthly, that’s $350/month. Caching can reduce backend invocations significantly.
Shield Standard is included at no additional cost. Shield Advanced costs $3,000/month plus data transfer fees, only justified for high-value APIs where downtime is extremely costly.
Lambda invocations saved by blocking malicious requests represent the hidden cost savings. We block approximately 5 million malicious requests monthly that would have cost $1 in Lambda invocations plus potential data breach costs.
Total monthly cost for our security stack: approximately $465 for WAF and API Gateway, blocking attacks that would cost far more in compute resources and potential breaches.
Key Takeaways
This architecture stops millions of malicious requests monthly, requests that would cost money and potentially compromise systems. The layered approach proves essential: WAF catches obvious attacks, API Gateway enforces business logic throttling and authentication, and Shield protects against network-layer DDoS. No single layer would be sufficient.
