Building a 3-Tier Architecture with Serverless on AWS
Introduction
As cloud engineering continues to evolve, serverless architectures have emerged as a compelling alternative to traditional server-based approaches. When it comes to building scalable, maintainable applications, the 3-tier architecture pattern remains one of the most widely adopted designs. But what happens when we combine this time-tested pattern with AWS serverless technologies? Let’s explore how to architect a robust 3-tier serverless solution and examine its trade-offs.
Understanding the Serverless 3-Tier Model

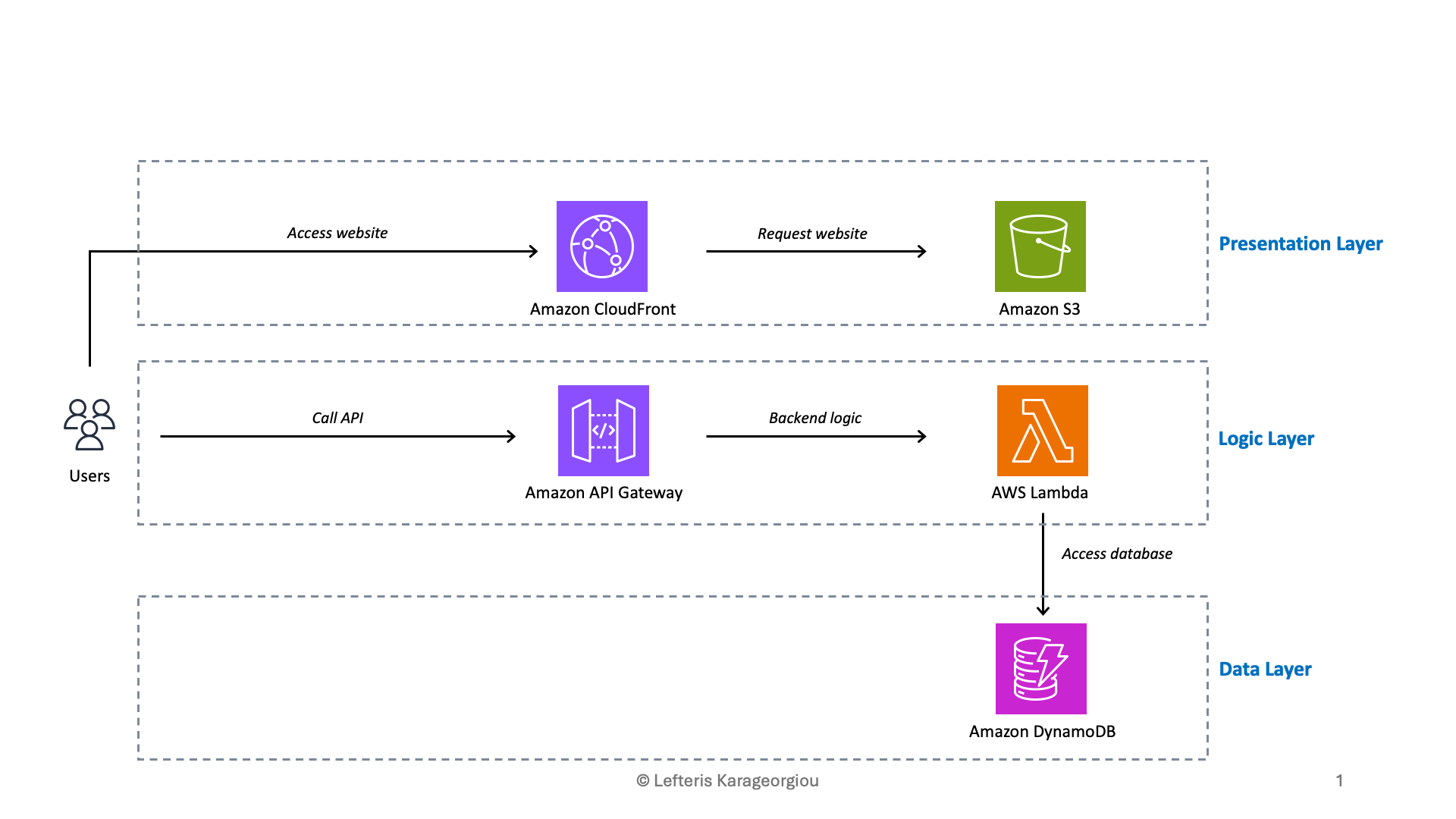

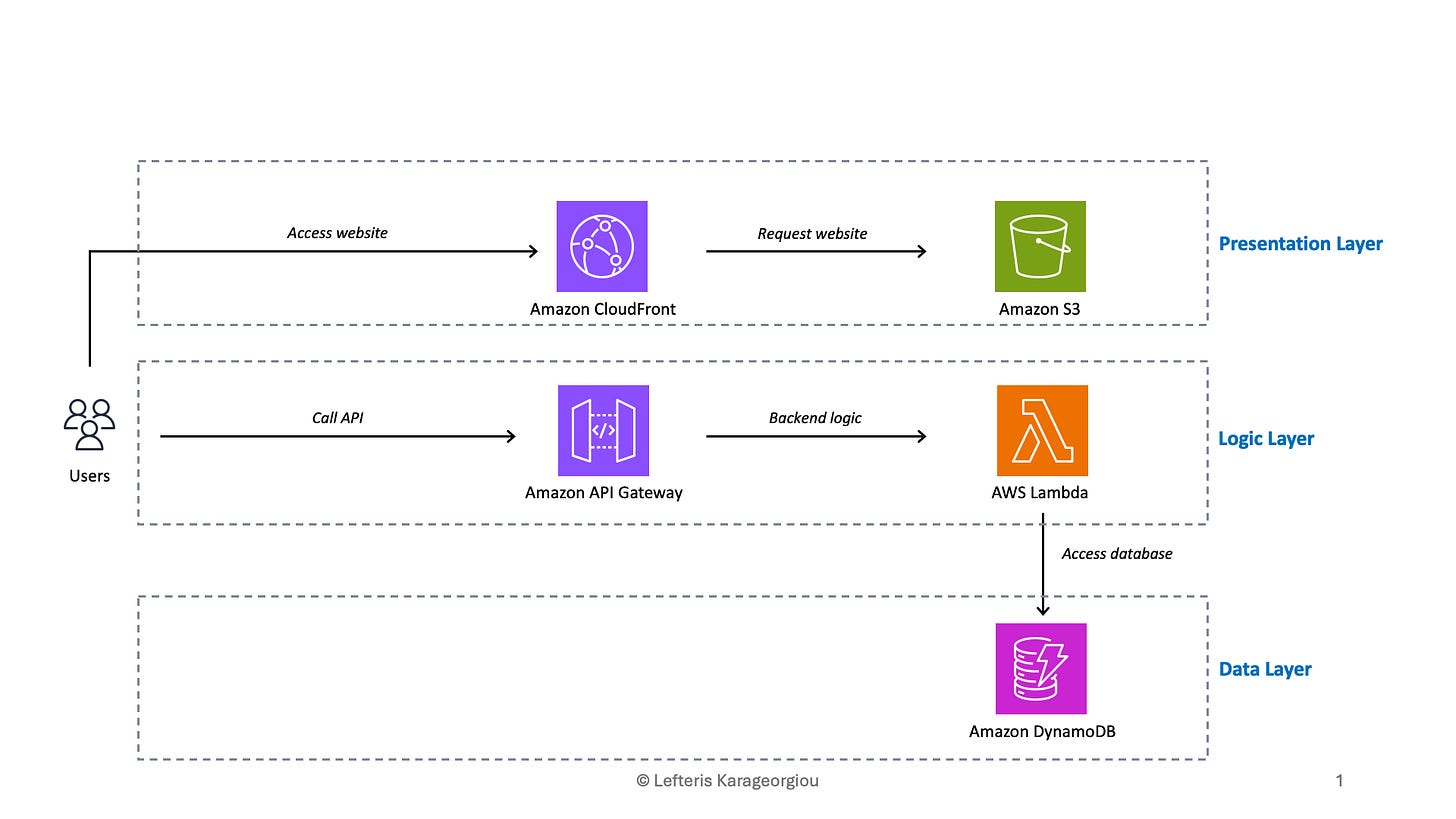

The traditional 3-tier architecture consists of a presentation layer, business logic layer, and data layer. In a serverless context on AWS, this translates to:
Presentation Tier: Amazon CloudFront for content delivery, S3 for static web hosting, and potentially AWS AppSync for real-time GraphQL APIs or API Gateway for REST endpoints.
Logic Tier: AWS Lambda functions handling business logic, with Amazon EventBridge for event-driven workflows, and SQS/SNS for asynchronous processing.
Data Tier: DynamoDB for NoSQL requirements, RDS Aurora Serverless for relational data, and S3 for object storage.
Architectural Advantages
Cost Optimization
Perhaps the most compelling advantage of serverless 3-tier architecture is its cost model. You only pay for actual usage rather than provisioned capacity. Lambda functions charge per invocation and execution time, DynamoDB bills based on read/write capacity consumed, and S3 charges for storage and requests. This pay-per-use model can result in significant cost savings, especially for applications with variable or unpredictable traffic patterns.
Automatic Scaling
Serverless services handle scaling automatically without any intervention. Lambda functions can scale from zero to thousands of concurrent executions, DynamoDB can automatically adjust read/write capacity, and CloudFront scales globally by default. This eliminates the need to predict traffic patterns or manually adjust resources during peak periods.
Reduced Operational Overhead
With AWS managing the underlying infrastructure, your team can focus on business logic rather than server maintenance, patching, or capacity planning. There are no servers to monitor, no operating systems to update, and no infrastructure to provision. This dramatically reduces the operational burden on development teams.
Built-in High Availability
AWS serverless services are inherently designed for high availability across multiple availability zones. Lambda functions automatically run in multiple AZs, DynamoDB provides 99.99% availability, and S3 offers 99.999999999% (11 9’s) durability. This built-in resilience would require significant effort to replicate with traditional infrastructure.
Rapid Development and Deployment
Serverless architectures enable faster development cycles. Teams can deploy individual functions independently, test changes quickly, and iterate rapidly. The reduced infrastructure complexity means developers can spend more time on feature development and less time on deployment concerns.
Architectural Challenges
Cold Start Latency
One of the most significant drawbacks of serverless architectures is cold start latency. When Lambda functions haven’t been invoked recently, they require initialization time that can range from milliseconds to several seconds, depending on the runtime and function complexity. For latency-sensitive applications, this can impact user experience, particularly for the presentation tier APIs.
Vendor Lock-in Concerns
Building a serverless 3-tier architecture on AWS creates strong coupling to AWS services. DynamoDB’s query patterns, Lambda’s execution model, and API Gateway’s request/response format are all AWS-specific. Migrating such an architecture to another cloud provider would require significant refactoring rather than simple rehosting.
Limited Execution Control
Serverless services impose constraints that may not suit all applications. Lambda functions have maximum execution timeouts, memory limits, and package size restrictions. You cannot access the underlying file system persistently, install custom software at the OS level, or maintain long-running connections effectively.
Monitoring and Debugging Complexity
Distributed serverless architectures can be challenging to monitor and debug. With logic spread across multiple Lambda functions, API Gateway stages, and various AWS services, tracing request flows and identifying performance bottlenecks becomes more complex. While AWS provides tools like X-Ray and CloudWatch, the observability story is often more complicated than monolithic applications.
State Management Challenges
Serverless functions are stateless by design, which means any application state must be stored externally. This can complicate application design, especially when migrating from stateful architectures. Session management, caching strategies, and maintaining context across function invocations require careful architectural consideration.
Design Considerations
Data Access Patterns
In a serverless 3-tier architecture, data access patterns significantly impact performance and cost. DynamoDB’s single-table design works well with serverless but requires careful planning of partition keys and access patterns. The tight coupling between your data model and query requirements becomes more critical than in traditional relational database designs.
API Design and Gateway Strategy
The choice between REST APIs via API Gateway, GraphQL through AppSync, or direct service integrations affects both performance and cost. API Gateway adds latency and cost per request but provides valuable features like authentication, throttling, and request transformation. Direct integrations can be more efficient but may sacrifice flexibility.
Security Architecture
Serverless security follows a shared responsibility model with unique considerations. IAM roles and policies become crucial as they define what each function can access. The principle of least privilege is essential, but the granular nature of serverless functions can lead to complex permission matrices. Additionally, securing API endpoints, managing secrets, and implementing proper authentication flows require careful planning.
Event-Driven vs. Synchronous Processing
Serverless architectures excel at event-driven processing. Designing your business logic tier to leverage events through EventBridge, SQS, or direct service integrations can improve resilience and performance. However, this requires a shift in thinking from traditional synchronous processing patterns.
When Serverless 3-Tier Makes Sense
This architecture pattern works exceptionally well for:
Applications with variable or unpredictable traffic
Event-driven workloads with natural asynchronous processing
Teams prioritizing rapid development and deployment
Organizations wanting to minimize operational overhead
Applications that can tolerate some cold start latency
Workloads that fit within serverless service limits
When to Consider Alternatives
Traditional or container-based 3-tier architectures might be better for:
Applications requiring consistent ultra-low latency
Workloads with steady, predictable traffic patterns
Systems needing extensive customization of the runtime environment
Applications with complex state management requirements
Organizations with strict data sovereignty requirements
Teams with significant existing infrastructure investments
Conclusion
Building a 3-tier architecture with serverless on AWS offers compelling advantages in terms of cost, scalability, and operational simplicity. The pay-per-use model, automatic scaling, and reduced infrastructure management can accelerate development and reduce overhead significantly.
As you evaluate this pattern for your next project, consider starting with a pilot application or specific use case to gain hands-on experience with serverless design patterns before committing to larger implementations.
